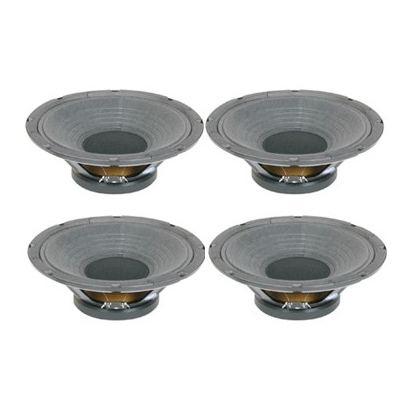

Pack of 4 Eminence 10516 LEGEND 105 10 inch Guitar Speaker 16 Ohm
COOKIES: Our website uses cookies in order to provide a better online experience, this is essential for use of the shopping basket, and to login to our website. We require your consent to use cookies in order to meet relevant regulations. Please CLICK HERE to indicate your consent and continue using our website. We do not use third party tracking cookies on our website, cookies are used for this site's functionality only.
Eminence
Pack of 4 Eminence 10516 LEGEND 105 10" Guitar Speaker 16 Ohm


Product Code: EMIEGL105B_4PK | Brand: Eminence
Pack of 4 Eminence 10516 LEGEND 105 10 inch Guitar Speaker 16 Ohm
£249.17
£207.64 ex VAT
Login to see JAM Club pricing
Not a member? Join Now
NONE IN STOCK - OUT OF STOCK
£7.93 DELIVERY to mainland UK.
Pack of 4 Eminence 10516 LEGEND 105 10" Guitar Speaker 16 Ohm

The tone that started it all. This long-standing line of guitar speakers didn’t get its name by accident. Known for their power, reliability and value, these rock-solid speakers have backed legendary players in legendary venues. Look inside some of the best sounding amps and you may see a Legend that was factory-installed or put in as a replacement. Either way you’ll know someone knew what tone they wanted and how to get it. If you want to sound like a legend, play one.

The Eminence Legend 105 guitar speaker takes classic tone a step further. Vintage American tone with punchy lows and warm, smooth, bluesy mids and highs. Fatter Legend 1028K tone with more depth.

Click here for datasheet

Specifications:

  • Nominal Basket Diameter 10", 254mm
  • Nominal Impedance* 16 ohms
  • Power Rating**
  • Watts 75W
  • Music Program N/A
  • Resonance 96Hz
  • Usable Frequency Range 100Hz - 5.8kHz
  • Sensitivity*** 100dB
  • Magnet Weight 16 oz.
  • Gap Height 0.25", 6.35mm
  • Voice Coil Diameter 1.5", 38.1mm

    Thiele & Small Parameters:

  • Resonant Frequency (fs) 96Hz
  • DC Resistance (Re) 10.2
  • Coil Inductance (Le) 0.64mH
  • Mechanical Q (Qms) 13.8
  • Electromagnetic Q (Qes) 1.32
  • Total Q (Qts) 1.21
  • Compliance Equivalent Volume (Vas) 21.8 liters / 0.8 cu.ft.
  • Mechanical Compliance of Suspension (Cms) 0.13mm/N
  • BL Product (BL) 9.9 T-M
  • Diaphragm Mass Inc. Airload (MMs) 21 grams
  • Efficiency Bandwidth Product (EBP) 73
  • Surface Area of Cone (Sd) 344.9 cm2
  • Maximum Mechanical Limit (Xlim) N/A

    Mounting Information:

  • Recommended Enclosure Volume
  • Sealed Acceptable
  • Vented Acceptable
  • Driver Volume Displaced 56.5 cu.in. / 0.93 liters
  • Overall Diameter 10.11", 256.8mm
  • Baffle Hole Diameter 9.13", 231.8mm
  • Front Sealing Gasket Fitted as standard
  • Rear Sealing Gasket Fitted as standard
  • Mounting Holes Diameter 0.23", 5.7mm
  • Mounting Holes B.C.D. 9.6", 243.8mm
  • Depth 4.1", 104mm
  • Net Weight 4.4 lbs, 2 kg
  • Shipping Weight 5.4 lbs, 2.5 kgs

    Materials of Construction:

  • Coil Construction Copper voice coil
  • Coil Former Polyimide former
  • Magnet Composition Ferrite magnet
  • Core Details Non-vented core
  • Basket Materials Pressed steel basket
  • Cone Composition Paper Cone
  • Cone Edge Composition Paper cone edge
  • Dust Cap Composition Solid composition felt dust cap



  • Detailed specifications unavailable, please EMAIL the sales office for additional information.

    Pack of 2 Eminence 10516 LEGEND 105 10" Guitar Speaker 16 Ohm
    Pack size: 2 units @ £125.86 incl VAT - Equivalent price: £62.93 incl VAT per item

    Please callOUT OF STOCK
    Product Code: EMIEGL105B_2PK

    Pack of 4 Eminence 10516 LEGEND 105 10" Guitar Speaker 16 Ohm
    Pack size: 4 units @ £249.17 incl VAT - Equivalent price: £62.29 incl VAT per item

    Please callOUT OF STOCK
    Product Code: EMIEGL105B_4PK
