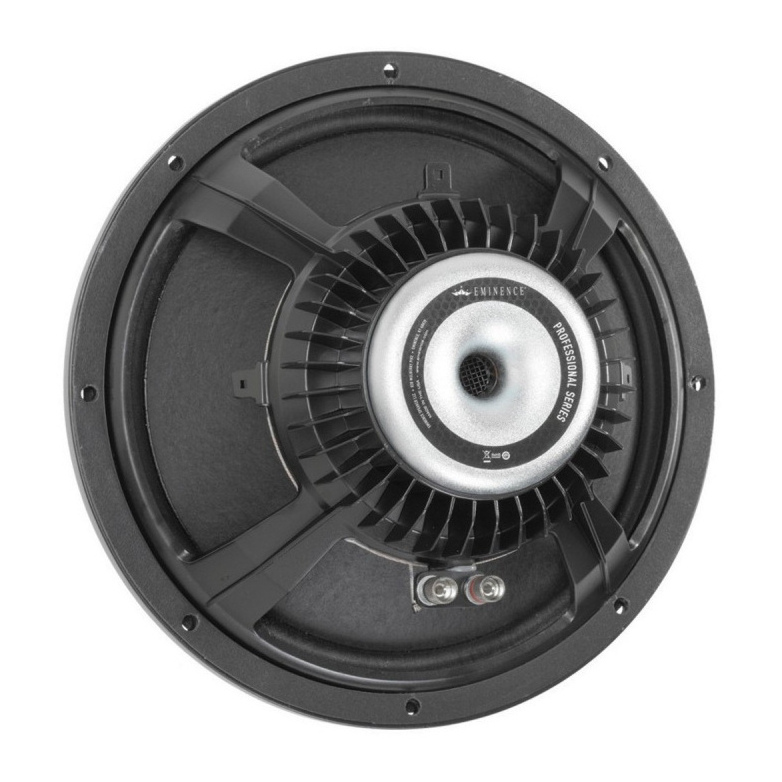

Eminence Kappalite 3012HO - 12 inch 400W 8 Ohm
COOKIES: Our website uses cookies in order to provide a better online experience, this is essential for use of the shopping basket, and to login to our website. We require your consent to use cookies in order to meet relevant regulations. Please CLICK HERE to indicate your consent and continue using our website. We do not use third party tracking cookies on our website, cookies are used for this site's functionality only.
Eminence
Eminence Kappalite 3012HO - 12" 400W 8 Ohm
SPL: 100.5 1W/1m Fs: 52 Hz Xmax: 6.2mm Neodymium

Product Code: EMIKLIT3012HO | Brand: Eminence
Eminence Kappalite 3012HO - 12 inch 400W 8 Ohm

Eminence Kappalite 3012HO - 12 inch 400W 8 Ohm Eminence Kappalite 3012HO - 12 inch 400W 8 Ohm Eminence Kappalite 3012HO - 12 inch 400W 8 Ohm Eminence Kappalite 3012HO - 12 inch 400W 8 Ohm
£215.52
£179.60 ex VAT
2-3 £212.29 ea.4-7 £209.05 ea.8+ £204.74 ea.
Login to see JAM Club pricing
Not a member? Join Now
£8.45 DELIVERY to mainland UK.
Eminence Kappalite 3012HO 400W 12" Driver Lightweight Neodymium Driver

Recommended as a woofer, midbass or midrange in sealed and vented enclosures. A popular choice choice for 12 inch line arrays and bass guitar applications.
  • Nominal Basket Diameter 12", 305mm
  • Nominal Impedance* 8 ohms
  • Power Rating: Watts 400W, Music Program 800W
  • Resonance 52Hz
  • Usable Frequency Range 51Hz - 3.5kHz
  • Sensitivity*** 100.5dB
  • Magnet Weight 11 oz.
  • Gap Height 0.36", 9.27mm
  • Voice Coil Diameter 3", 76.2mm


Thiele & Small Parameters:

  • Resonant Frequency (fs) 51.5Hz
  • DC Resistance (Re) 5.5
  • Coil Inductance (Le) 0.57mH
  • Mechanical Q (Qms) 8.39
  • Electromagnetic Q (Qes) 0.33
  • Total Q (Qts) 0.32
  • Compliance Equivalent Volume (Vas) 81.1 liters / 2.86 cu.ft.
  • Peak Diaphragm Displacement Volume (Vd) 330cc
  • Mechanical Compliance of Suspension (Cms) 0.2mm/N
  • BL Product (BL) 15.9 T-M
  • Diaphragm Mass Inc. Airload (MMs) 46.9 grams
  • Efficiency Bandwidth Product (EBP) 157.4
  • Maximum Linear Excursion (Xmax) 6.2mm
  • Surface Area of Cone (Sd) 532.4 cm2
  • Maximum Mechanical Limit (Xlim) 12.5mm


Mounting Information:

  • Recommended Enclosure Volume: Sealed 28-76 liters, Vented 41-110 liters
  • Driver Volume Displaced 93.6 cu.in. / 1.53 liters
  • Overall Diameter 12.38", 314.45mm
  • Baffle Hole Diameter 11.06", 280.9mm
  • Front Sealing Gasket Fitted as standard
  • Rear Sealing Gasket Fitted as standard
  • Mounting Holes Diameter 0.28", 7.1mm
  • Mounting Holes B.C.D. 11.62", 295.2mm
  • Depth 5.63", 143mm
  • Net Weight 7.1 lbs, 3.22 kg
  • Shipping Weight 8.7 lbs, 3.95 kgs


Materials of Construction:

  • Coil Construction Aluminum voice coil
  • Coil Former Kapton former
  • Magnet Composition Neodymium magnet
  • Core Details Vented core
  • Basket Materials Die-cast aluminum basket
  • Cone Composition Treated paper cone
  • Cone Edge Composition Sealed cloth surround
  • Dust Cap Composition Treated paper dust cap

Eminence Kappalite 3012HO Twin Pack
Pack size: 2 units @ £424.57 incl VAT - Equivalent price: £212.29 incl VAT per item

Eminence Kappalite 3012HO Twin Pack - currently in stock1 IN STOCK
Product Code: EMIKLIT3012HO_2PK

Eminence Kappalite 3012HO Four Pack
Pack size: 4 units @ £836.22 incl VAT - Equivalent price: £209.06 incl VAT per item

Please callOUT OF STOCK
Product Code: EMIKLIT3012HO_4PK
