This product is not for sale Archived information provided for reference only | ||

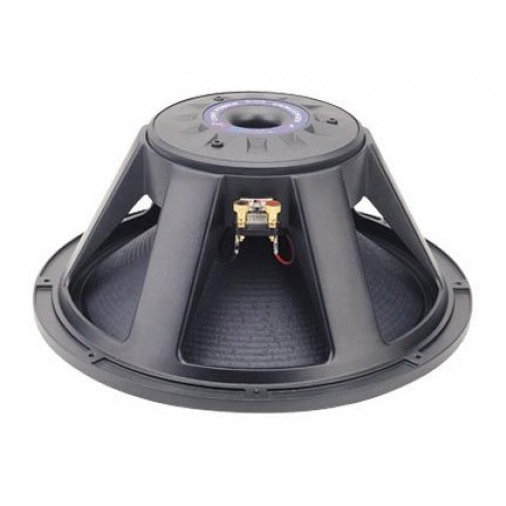

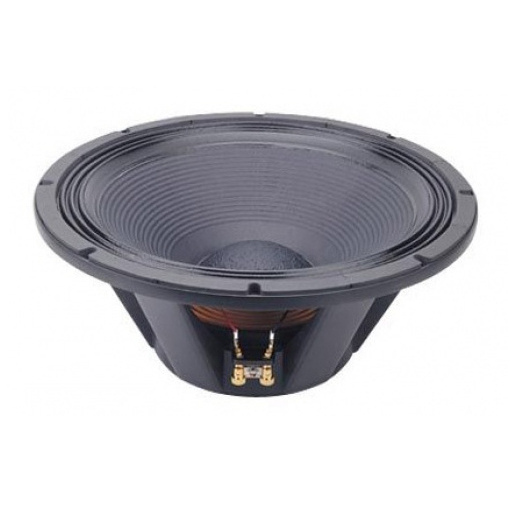

P-Audio C18-650EL Mk1 18" 650W 8 Ohm Loudspeaker Driver
Original version of P-Audio's Challenger Series C18-650EL, known to work well as a good budget option in Rog Mogale's X1 6th Order bandpass enclosure.
Specifications~:
- Power handling 650W AES
- Frequency range 25-500 Hz
- Resonanct frequency Fs 45 Hz
- Impedance R 8 Ohm
- Sensitivity 98 dB (2,83V; 1m)
- DC resistance Re 5.3 Ohm
- BL product 25.24 Tm
- Voice coil inductance L 1.64 mH
- Effective piston radiating area Sd 1250 cm2
- Effective moving mass incl. air load Mms 160,76 g
- Compliance equivalent volume Vas 158,25 l
- Total Q factor Qts 0.37
- Mechanical Q Qms 9.57
- Electrical Q Qes 0.39
- Voice coil diameter 220 mm
- Maximum linear excursion Xmax 5 mm
- Mounting diameter 423.8 mm
- Overall diameter 475,8 mm
- Mounting depth 190,3 mm
