Beyma 12CXA400Nd 12" 400W
SPL: 97.6dB Fs: 45Hz Xmax: 6.0mm

Product Code: BMA12CXA4ND8 | Brand: Beyma


£381.31
£317.76 ex VAT
Qty:

2-3 £377.50 ea.4-7 £373.69 ea.8+ £369.87 ea.
0% finance Click for details
10% Deposit: £38.13
12 Monthly payments @ £28.60

Usually available in <br>3-4 weeks
Usually available in
3-4 weeks
FREE DELIVERY for mainland UK

Beyma 12CXA400Nd 12" 400W

Features:

  • 12" woofer with 4" voice coil and 2.8" voice coil compression driver
  • Program power: 800 W LF / 180 W HF
  • Sensitivity: 98 dB LF and 105 dB HF
  • Low weight and compact common magnet system design
  • Demodulating rings in LF and HF units
  • Composite Titanium/Mylar diaphragm
  • Waterproof LF cone
  • 60 degree coverage horn for HF dispersion control


Specifications:

  • Nominal diameter (LF) 300 mm 12 in
  • Rated impedance (LF/HF) 8 / 16 Ohms
  • Minimum impedance (LF/HF) 6,8 Ohms
  • Power capacity* (LF/HF) 400 / 90 WAES
  • Program power (LF/HF) 800 / 180 W
  • Sensitivity (LF/HF) 98 dB 2,83v @ 1m @ 2π
  • Frequency range 35 - 20.000 Hz
  • Recom. HF crossover 1,5 kHz or higher (12 dB/oct
  • Voice coil diameter 101,6 mm 4 in
  • Magnetic assembly weight 4,2 kg 9,26 lb
  • BL factor 18,1 N/A
  • Moving mass 0.048 kg
  • Voice coil length 16 mm
  • Air gap height 9 mm
  • Xdamage (peak to peak) 28 mm


Thiele Small Parameters:

  • Resonant frequency, fs 45 Hz
  • D.C. Voice coil resistance, Re 6,6 Ohms
  • Mechanical Quality Factor, Qms 6,24
  • Electrical Quality Factor, Qes 0,28
  • Total Quality Factor, Qts 0,26
  • Equivalent Air Volume to Cms, Vas 102,2 l
  • Mechanical Compliance, Cms 260 µm / N
  • Mechanical Resistance, Rms 2,19 kg / s
  • Efficiency, η0 3,25 %
  • Effective Surface Area, Sd 0,055 m2
  • Maximum Displacement, Xmax *** 6 mm
  • Displacement Volume, Vd 210 cm3
  • Voice Coil Inductance, Le @ 1 kHz 1 mH

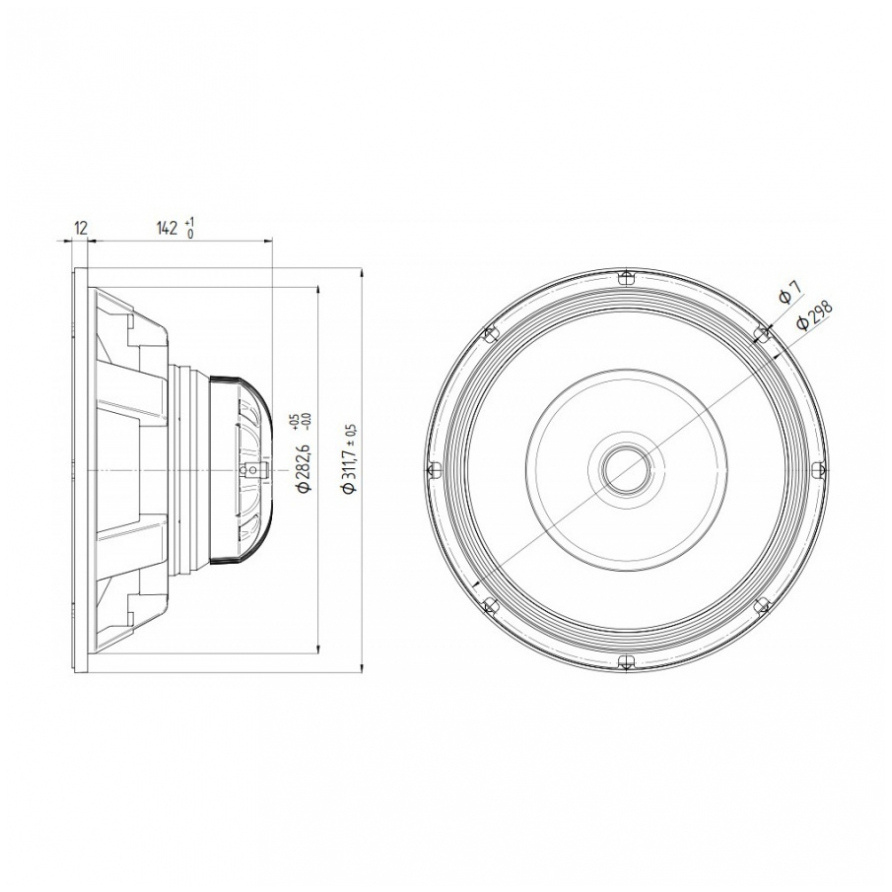

Mounting Information and Physical Data:

  • Overall diameter 311,7 mm 12,27 in
  • Bolt circle diameter 298 mm 11,73 in
  • Baffle cutout diameter: Front mount 282,6 mm 11,13 in, Rear mount: 286 mm 11,26 in
  • Depth 154 mm 6,06 in
  • Volume displaced by driver 6,5 l 0,23 ft3
  • Net weight 7,18 kg 15,83 lb
  • Shipping weight 8,05 kg 17,75 lb
