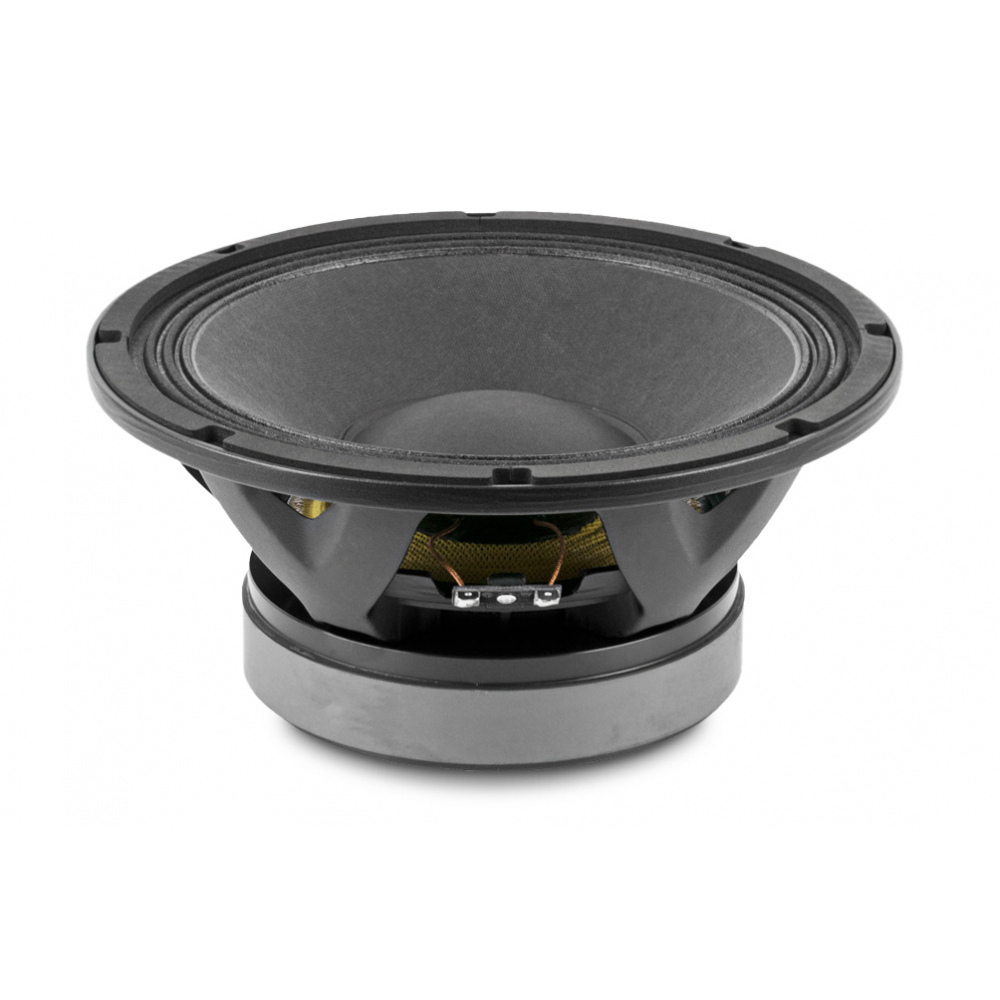

Beyma 10MC500 10" 8 Ohm 500W Loudspeaker Driver

Product Code: BMA10MC500 Brand: Beyma Model: 10MC500
Beyma 10MC500 10 inch 8 Ohm 500W Loudspeaker Driver
£119.97
£119.97 ex VAT
Decrease Increase
Quantity Discounts
2-3£116.37 ea.
4-7£113.97 ea.
8+£111.57 ea.
Usually available in <br>4-6 weeks
Usually available in
4-6 weeks
Sorry we dont have a delivery price for Country
Export prices without Sales Tax or VAT - additional customs fees may apply in your country
Beyma 10MC500 10" 8 Ohm 500W Loudspeaker Driver

Key Features:


  • High power handling: 1.000 W program power
  • 2.5” copper wire voice coil
  • Malt Cross Cooling System
  • Low power compression losses
  • High sensitivity: 97 dB
  • FEA optimized magnetic circuit
  • Aluminium demodulating ring
  • Weatherproof cone with treatment for both sides of the cone
  • Extended controlled displacement: Xmax ± 8 mm
  • 40 mm peak-to-peak excursion before damage
  • Optimized for 2 or 3 way PA systems and line arrays for ultimate professional applications

TECHNICAL SPECIFICATIONS


  • Nominal diameter 250 mm 10 in
  • Rated impedance 8 Ohm
  • Minimum impedance 7.1 Ohm
  • Power capacity 500 WAES
  • Program power 1,000 W
  • Sensitivity 97 dB 1W / 1m @ ZN
  • Frequency range 70 - 5,000 Hz
  • Voice coil diameter 63.5 mm 2.5 in
  • Bl factor 18.3 N/A
  • Moving mass 0.044 kg
  • Voice coil length 19.5 mm
  • Air gap height 9.5 mm
  • Xdamage (peak to peak) 40 mm

THIELE-SMALL PARAMETERS


  • Resonant frequency, fs 65 Hz
  • D.C. Voice coil resistance, Re 5.6 Ohm
  • Mechanical Quality Factor, Qms 7.5
  • Electrical Quality Factor, Qes 0.30
  • Total Quality Factor, Qts 0.29
  • Equivalent Air Volume to Cms, Vas 24 l
  • Mechanical Compliance, Cms 136 µm / N
  • Mechanical Resistance, Rms 2.4 kg / s
  • Efficiency, η0 2.1 %
  • Effective Surface Area, Sd 0.035 m2
  • Maximum Displacement, Xmax 8 mm
  • Displacement Volume, Vd 280 cm3
  • Voice Coil Inductance, Le 1 mH
