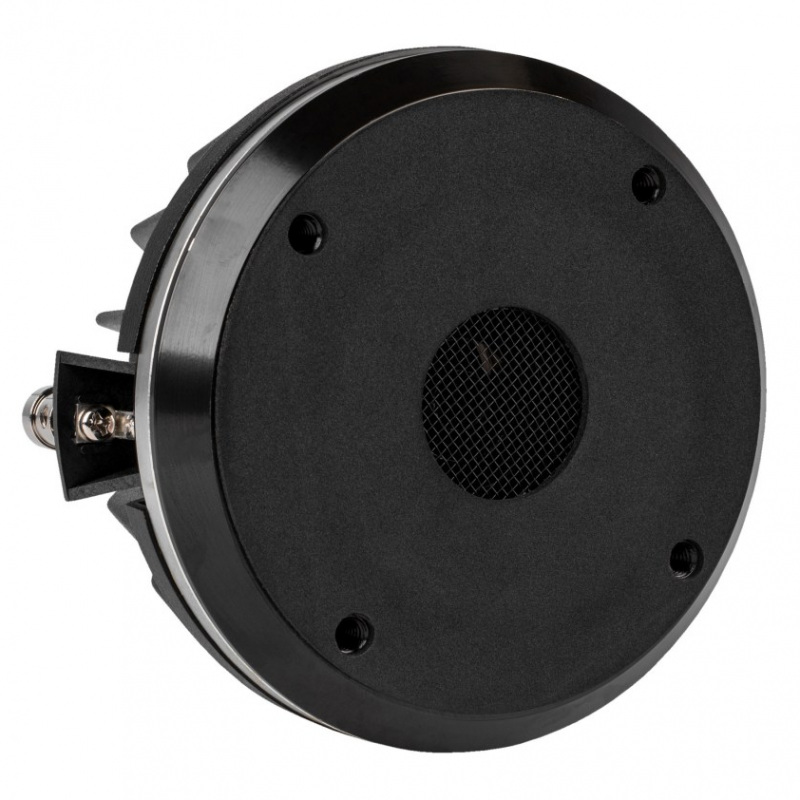

Eminence N314T 8 Ohm 100W 1.4" Bolt On Neodymium Compression Driver

Product Code: EMIN314TA Brand: Eminence Model: N314T-8

Eminence N314T 8 Ohm 100W 1.4 inch Bolt On Neodymium Compression Driver

HOT DEAL:
£181.20
SRP £200.62

Quantity Discounts

2-3£197.61 ea.

4-7£194.60 ea.

8+£190.59 ea.

8+
IN STOCK

Request stock Info

NO DELIVERY PRICE

available for Country

Eminence N314T 8 Ohm 100W 1.4" Bolt On Neodymium Compression Driver

A new standard in compression drivers from Eminence, the N314T is a high-performance compression driver that delivers smooth and accurate sound reproduction in a variety of applications. Featuring D3 technology (Damped Diametric Drive), a 3 inch voice coil, and lightweight neodymium ring magnet with copper shorting ring, the N314T-8 offers an ultra-clean sound and low crossover point. With a power handling of up to 100 watts RMS, this driver can handle high volumes in demanding music styles. The N314T is a reliable and versatile choice for high-quality sound.

SPECIFICATION:

Throat Size 1.4", 35.6mm
Nominal Impedance 8 ohms
Minimum Impedance 6.7 ohm @ 3.7 kHz
Power Rating** 100 W (AES)
Resonance 0.55kHz
Usable Frequency Range 800Hz-20kHz
Recommended Crossover 800 Hz / 12 dBkHz
Sensitivity*** 110.9dB/W @ 1m
Magnet Material Neodymium
Magnet Weight 11oz, 0.31kg
Voice Coil Diameter 3" / 76.2mm
Voice Coil Former Polyimide
Diaphragm Material Titanium
DC Resistance (Re) 4.8 ohms

MOUNTING INFORMATION:

Overall Diameter 5.72", 145.3mm
Driver Volume Displaced 0.02 cu.ft., 0.66 liters
Depth 2.53", 64.3mm
Weight 4.8 lbs, 2.2 kg
Mounting Thread N/A
Mounting Holes Diameter 4X 1/4-20
Mounting Holes B.C.D. 4 in. 101.6 mm
