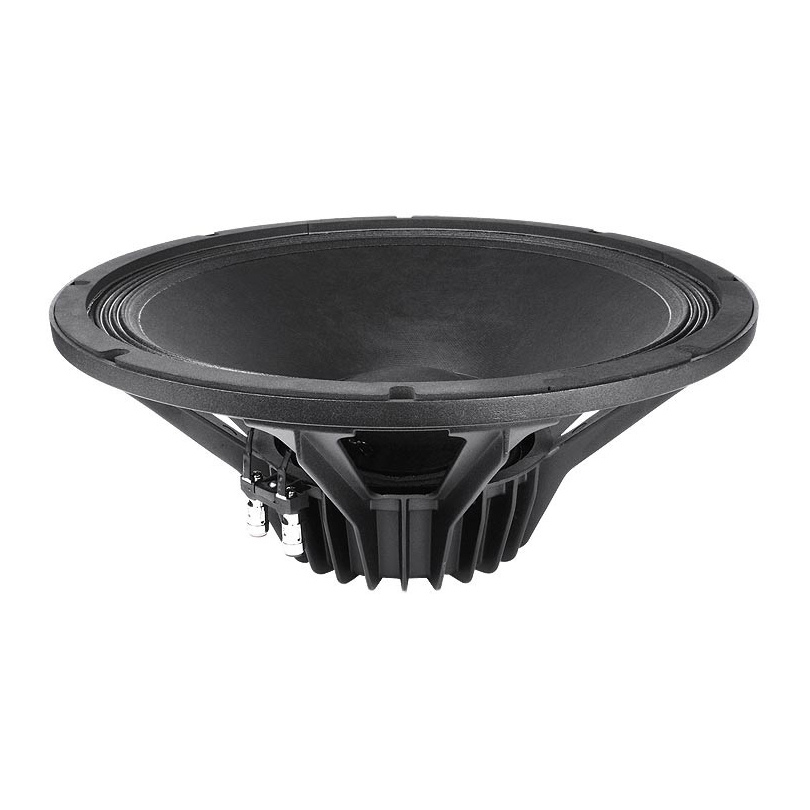

Faital Pro 15PR400 15 inch 400W 8 Ohm
COOKIES: Our website uses cookies in order to provide a better online experience, this is essential for use of the shopping basket, and to login to our website. We require your consent to use cookies in order to meet relevant regulations. Please CLICK HERE to indicate your consent and continue using our website. We do not use third party tracking cookies on our website, cookies are used for this site's functionality only.
Faital Pro
Faital Pro 15PR400 15" 400W 8 Ohm
With Faston Spade Terminals

Product Code: FTP15PR400AF | Brand: Faital Pro
Faital Pro 15PR400 15 inch 400W 8 Ohm

Faital Pro 15PR400 15 inch 400W 8 Ohm Faital Pro 15PR400 15 inch 400W 8 Ohm Faital Pro 15PR400 15 inch 400W 8 Ohm Faital Pro 15PR400 15 inch 400W 8 Ohm
£201.48
£167.90 ex VAT
2-3 £198.46 ea.4-7 £195.44 ea.8+ £191.41 ea.
Login to see JAM Club pricing
Not a member? Join Now
2 ON ORDER On Order <br> ETA Unknown
On Order
ETA Unknown
£9.11 DELIVERY to mainland UK.
Faital Pro 15PR400 15" 400W 8 Ohm

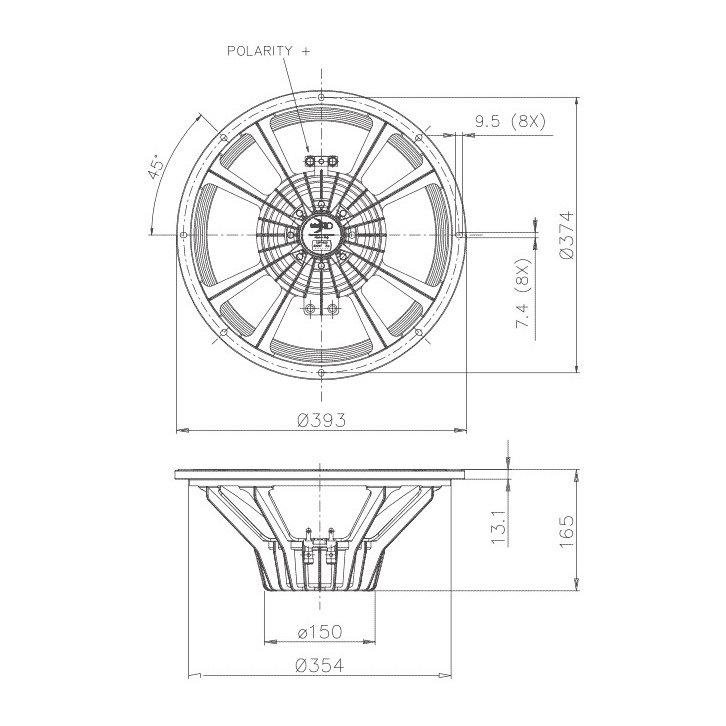

Nominal Specifications


  • Nominal Diameter - 380 mm (15 in)
  • Overall Diameter - 393 mm (15.47 in)
  • Bolt Circle Diameter - 374 mm (14.72 in)
  • Baffle Cutout Diameter - 356 mm (14.02 in)
  • Depth - 165 mm (6.50 in)
  • Flange and Gasket Thickness - 13.1 mm (0.52 in)
  • Net Weight - 3.6 Kg (7.9 lb)
  • Shipping Box(Single Carton Box) - 430 x 427 x 236 mm (16.9 x 16.8 x 9.3 in)
  • Shipping Weight - 4.7 Kg (10.4 lb)

Technical specifications


  • Nominal Diameter: 380 mm (15in)
  • Overall Diameter: 393 mm (15.47in)
  • Bolt Circle Diameter: 374 mm (14.72in)
  • Baffle Cutout Diameter: 356 mm (14.02in)
  • Overall Depth: 165 mm (6.50in)
  • Flange/Gasket Thickness: 13.1 mm (0.52in)
  • Impedance: 8 ohm
  • Minimum Impedance: 5.9 ohm
  • AES Power: 400 W
  • Program Power: 800 W
  • Sensitivity: 99 dB
  • Frequency Range: 35:4000 Hz
  • Voice Coil Diameter: 77 mm (3in)
  • Voice Coil Material: Al
  • Voice Coil Former: Glass Fiber
  • Voice Coil Depth: 15 mm (0.59in)
  • Magnetic Gap Depth: 10.5 mm (0.41in)
  • Surround Type: Accordion
  • Spider Profile: 1x constant height waves
  • Chassis Material: Aluminum
  • Magnet Material: Neodymium Slug
  • Demodulating Ring: No
  • Flux Density: 1.15 T
  • Driver Displacement Volume: 3.7 L (0.131ft^3)


Thiele and small parameters


  • Resonance (Fs) - 35 Hz
  • DC Resistance (Re) - 5.1 Ohm
  • Electrical Q (Qes) - 0.34
  • Mechanical Q (Qms) - 6.0
  • Total Q (Qts) - 0.32
  • Compliance Equivalent Volume (Vas) - 248.9 L
  • Diaphragm Area (Sd) - 857 cm2
  • Maximum Linear Excursion (Xmax) - 5.75 mm
  • Maximum Mechanical Excursion (Xdamage) - 15.5 mm
  • Moving Mass - System (Mms) - 85.2 g
  • Force Factor (BL) - 16.7 Tm
  • Voice Coil Inductance (Le) - 0.72 mH
  • Moving Mass - Diaphragm (Mmd) - 56.8 g
  • Compliance (Cms) - 0.24 mm/N
  • Mechanical Resistance (Rms) - 3.1 Kg/s
  • Reference Efficiency (Eta Zero) - 3.02 %
  • Efficiency Bandwidth Product (EBP) - 103

Shipping Information


  • Net Weight: 3.6 kg (7.9lb)
  • Shipping Weight: 4.7 kg (10.4lb)
  • Shipping Box: 430 x 427 x 236 mm

Notes

1 - AES Power: 2 Hours Test According to AES 2-1984 Rev. 2003
2 - Maximum/Program power is defined as 3 dB greater than AES Power
3 - Xmax: Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
4 - Xdamage: Maximum excursion before permanent damage
