Faital Pro :: Faital Pro Horn Flares :: Faital Pro 1 Inch Bolt On :: Faital Pro STH100
Faital Pro

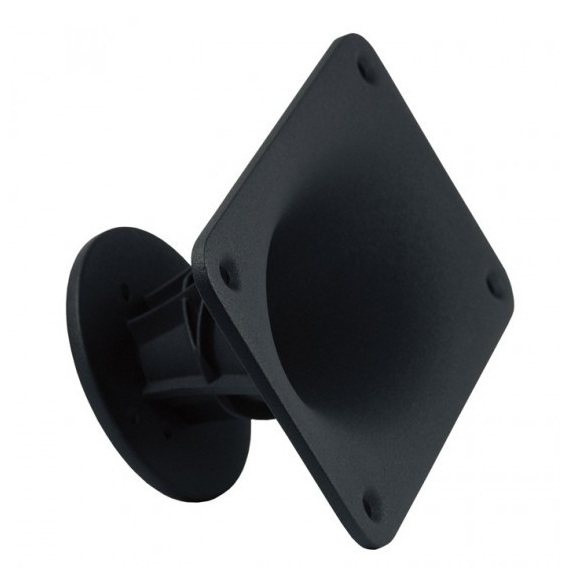

Faital Pro STH 100 1" Bolt On Aluminium Horn Flare 80 x 70 Dispersion

Product Code: FTPSTH100 Brand: Faital Pro Model: STH100
Faital Pro STH 100 1 inch Bolt On Aluminium Horn Flare 80 x 70 Dispersion
£28.82
£24.02 ex VAT
Decrease Increase
Quantity Discounts
2-3£28.38 ea.
4-7£27.95 ea.
8+£27.37 ea.
10+
IN STOCK
£4.61 DELIVERY to mainland UK.
Faital Pro STH 100 1" Bolt On Aluminium Horn Flare 80 x 70 Dispersion

Nominal Specifications
  • Throat Diameter 1", 25.4 mm
  • Frequency Range 1 - 20 kHz
  • Recomended Crossover Frequency(1) 1.4 kHz
  • Horizontal Nominal Coverage (-6dB) (2) 80 degrees
  • Vertical Nominal Coverage (-6dB) (2) 70 degrees
  • Directivity Index (2) (4) 8 dB

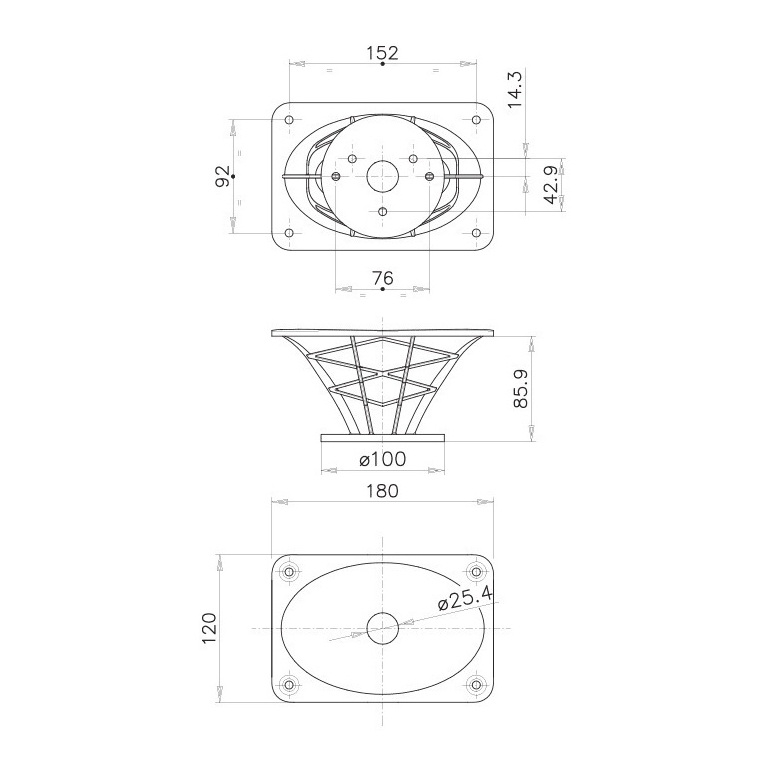

  • Overall Height 4.72", 120 mm
  • Overall Width 7.09", 180 mm
  • Mounting cutout 155 x 95mm (elliptical - maximum dimensions stated)
  • Depth 3.38", 85.9 mm
  • Mouth Mounting Holes (4x) 0.26", 6.5 mm
  • Mounting hole positions: 152 x 92mm
  • Shipping weight 567g
  • Material Aluminium



Detailed specifications unavailable, please EMAIL the sales office for additional information.
