Technical specifications

• Throat Diameter: 25.4 mm (1 in)
• Impedance: 8 Ohm
• Minimum Impedance: 7.3 Ohm
• AES Power: 60 W
• Program Power: 120 W
• Sensitivity: 108 dB
• Frequency Range: 1200 - 18000 Hz
• Voice Coil Material: Edgewound CCA
• Voice Coil Former: Fiber Glass
• Voice Coil Inductance: 0.08 mH
• Diaphragm Material: High temperature polymer
• Surround Material: High temperature polymer. vented
• Magnet Material: Ferrite

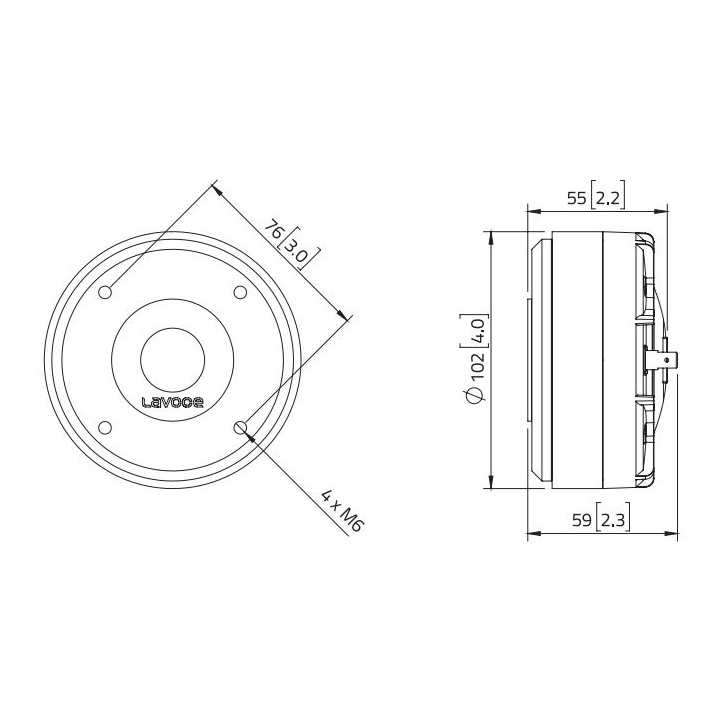

• Magnet Diameter: 102 mm (4.0 in)
• Flux Density: 1.4 T
• Driver Displacement Volume: 0.45 l (0.016 ft³)
• Recommended Crossover: 1.6 kHz

Shipping Information

• Multipack weight: 15.9 kg (35lb)
• Multipack size W x D x H: 460 x 427 x 109 mm (18.1 x 16.8 x 4.3in)
• Net weight: 1.6 kg (3.5lb)
• Multipack Quantity: 12

NOTES

1 - Program power is defined as 3 dB greater than AES Power
2 - AES Power: Horn loaded test for 2h with continuous, band-limited (2500-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003.
3 - Sensitivity: Measured on axis at 2.83V, 1m, driver loaded with 60° x 40° horn, SPL averaged in the frequency range 2000 - 18000 Hz.
4 - Recommended Crossover: High pass filter with slope 12dB/oct. or higher.
