This is a new product, which is not yet available. Preliminary information for reference only. Specifications may change. | ||

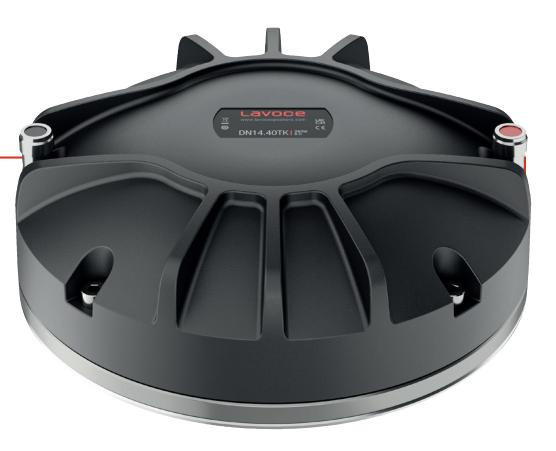

Lavoce DN14.40TK 1.4" Compression Driver 130W 8 Ohm
Key features
4 inch edgewound cca voice coil
109 db/spl sensitivity
260 w program power handling
Fem optimized motor, phaseplug and diaphragm
500 20000 hz frequency range
Titanium diaphragm and polyimide sorround
Patented iis integral input
surface phaseplug
Technical specifications
- Throat Diameter: 36 mm (1.4 in)
- Impedance: 8 Ohm
- Minimum Impedance: 8 Ohm
- AES Power: 130 W
- Program Power: 260 W
- Sensitivity: 109 dB
- Frequency Range: 500 - 20000 Hz
- Voice Coil Diameter: 100 mm (4 in)
- Voice Coil Material: Edgewound CCA
- Voice Coil Former: Kapton
- Voice Coil Inductance: 0.17 mH
- Diaphragm Material: Titanium
- Surround Material: Polyimide
- Magnet Material: Neodymium
- Magnet Diameter: 140 mm (5.5 in)
- Flux Density: 1.9 T
- Driver Displacement Volume: 0.7 l (0.025 ft3)
- Recommended Crossover: 0.8 kHz
Shipping Information
- Multipack weight: 20.2 kg (44.5lb)
- Multipack size W x D x H: 570 x 538 x 103 mm (22.4 x 21.2 x 4.1in)
- Net weight: 2.0 kg (4.4lb)
- Multipack Quantity: 9
NOTES
1 - Program power is defined as 3 dB greater than AES Power
2 - AES Power: Horn loaded test for 2h with continuous, band-limited (2500-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003.
3 - Sensitivity: Measured on axis at 2.83V, 1m, driver loaded with 60° x 40° horn, SPL averaged in the frequency range 2000 - 18000 Hz.
4 - Recommended Crossover: High pass filter with slope 12dB/oct. or higher.
