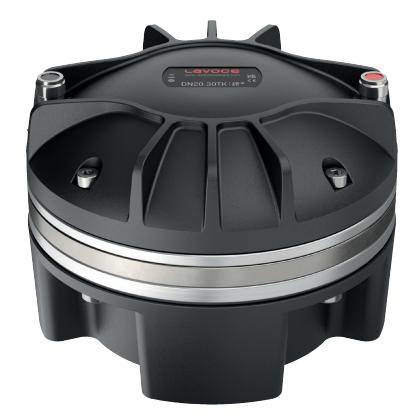

Lavoce DN20.30TK 2" Compression Driver 110W 8 Ohm
Key features
3 inch edgewound cca voice coil
108 db/spl sensitivity
220 w program power handling
Fem optimized motor, phaseplug and diaphragm
500 20000 hz frequency range
Titanium diaphragm and polyimide surround
Patented iis integral input surface phaseplug
Technical specifications
- Throat Diameter: 50 mm (2 in)
- Impedance: 8 Ohm
- Minimum Impedance: 8 Ohm
- AES Power: 110 W
- Program Power: 220 W
- Sensitivity: 108 dB
- Frequency Range: 500 - 20000 Hz
- Voice Coil Diameter: 75 mm (3 in)
- Voice Coil Material: Edgewound CCA
- Voice Coil Former: Kapton
- Voice Coil Inductance: 0.09 mH
- Diaphragm Material: Titanium
- Surround Material: Polyimide
- Magnet Material: Neodymium
- Magnet Diameter: 120 mm (4.7 in)
- Flux Density: 2 T
- Driver Displacement Volume: 0.8 l (0.028 ft3)
- Recommended Crossover: 0.8 kHz
Shipping Information
- Multipack weight: 18.4 kg (40.6lb)
- Multipack size W x D x H: 327 x 285 x 251 mm (12.9 x 11.2 x 9.9in)
- Net weight: 2.1 kg (4.6lb)
- Multipack Quantity: 4
NOTES
1 - Program power is defined as 3 dB greater than AES Power
2 - AES Power: Horn loaded test for 2h with continuous, band-limited (2500-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003.
3 - Sensitivity: Measured on axis at 2.83V, 1m, driver loaded with 60° x 40° horn, SPL averaged in the frequency range 2000 - 18000 Hz.
4 - Recommended Crossover: High pass filter with slope 12dB/oct. or higher.
