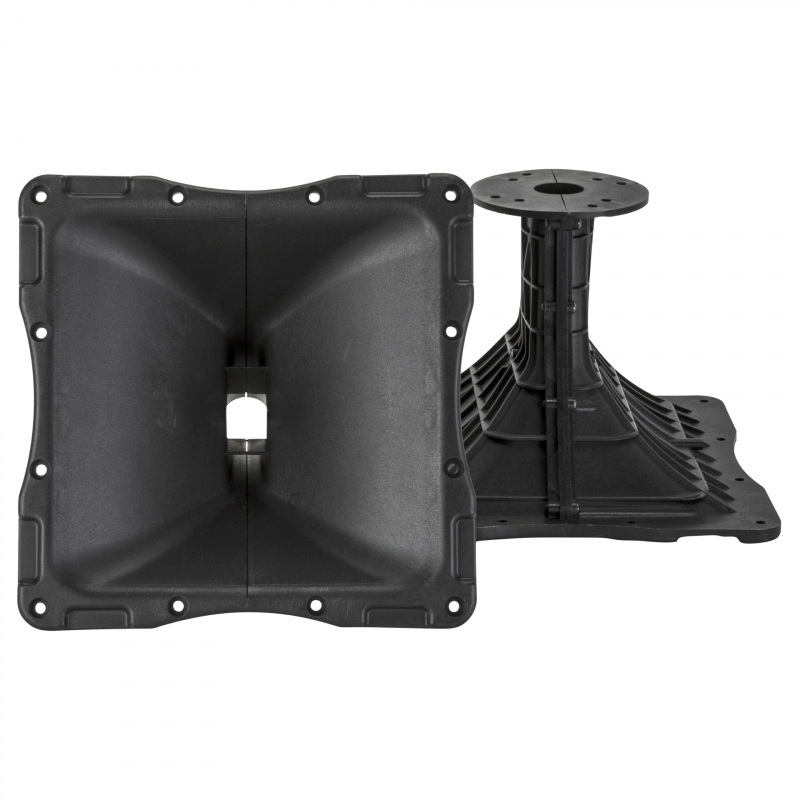

RCF HF950 Throat: 1.4", 90X50, 300X300mm, Cut-off 400Hz
1-inch/1.4 inch Throat Adaptor.90° x 50° Constant Directivity Coverage.
Structural Polyurethane
Perfectly Controlled Dispertion
Applications:
Part Number
Main Features:
- 1.4 inch Throat Adaptor
- 90° x 50° Constant Directivity Coverage
- Loading down to 400 Hz
- Structural Polyurethane
- Perfectly Controlled Dispertion
| GENERAL SPECIFICATIONS | |
| Throat Diameter: | 36 / 1.4 mm/inch |
| Nominal coverage angle (-6dB): | 90°x50° |
| Cut-off Frequency: | 400 Hz |
| Material: | Structural Polyurethane |
| MOUNTING INFORMATION | |
| Overall Dimensions: | 300x300 / 11,81x11,81 mm/inch |
| Baffle Cut-out Dimensions: | 260x260 / 10.23x10.23 mm/inch |
| Total Depth: | 221 / 8.70 mm/inch |
| Driver Mounting 4 x 6.5 mm holes: | 101 - 76 / 3.97 - 2.99 mm/inch |
| Net Weight : | 1.06 / 2.33 Kg/Lbs |
| Shipping Weight : | 1.4 / 3,08 Kg/Lbs |
