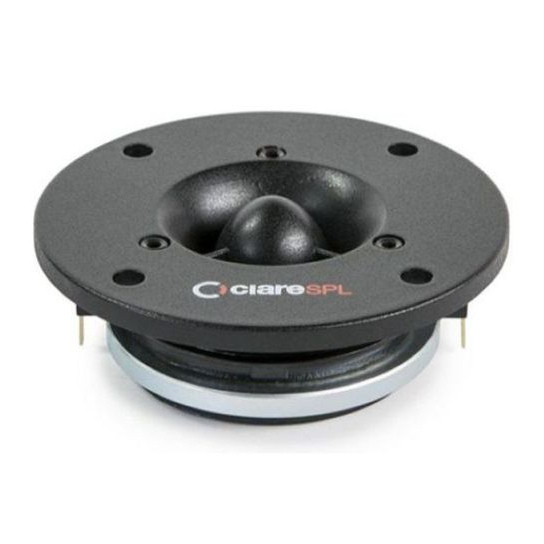

Ciare CT268ND 1" Tweeter Driver 150W 4 Ohm

Product Code: CIACT268NDC Brand: Ciare Model: CT268ND
Ciare CT268ND 1 inch Tweeter Driver 150W 4 Ohm
HOT DEAL:
£37.32
SRP £59.47
Decrease Increase
4
IN STOCK
£5.08 DELIVERY to mainland UK.
Ciare CT268ND 1" Tweeter Driver 150W 4 Ohm



Click here to request product information for this item

Technical specifications

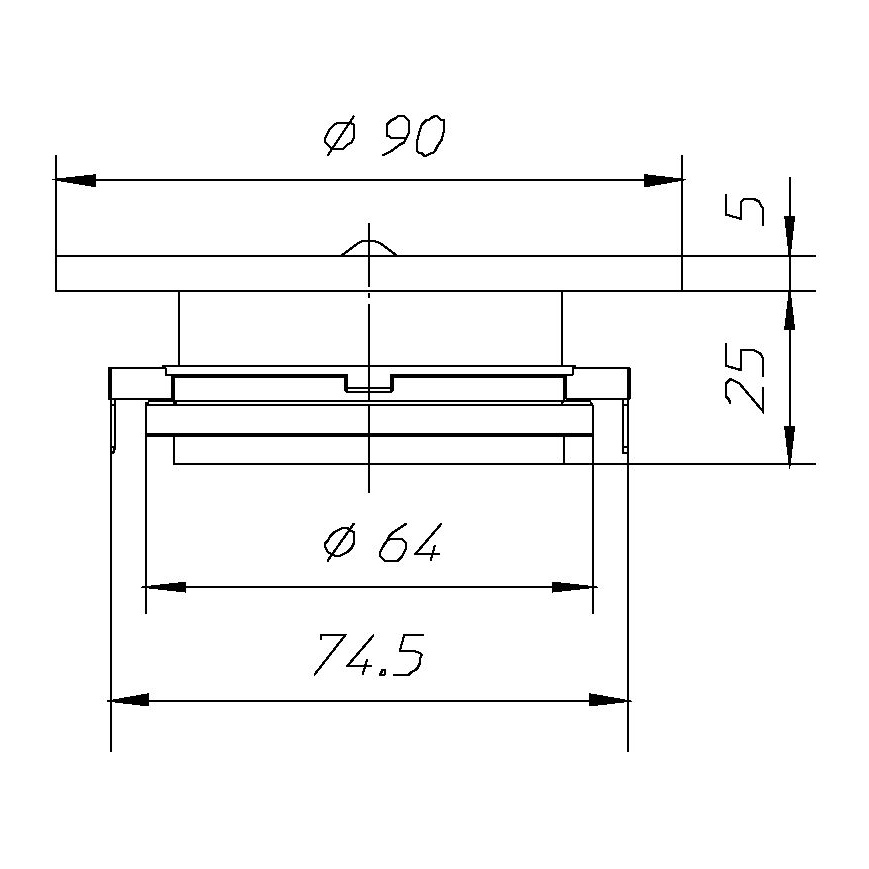

  • Nominal Diameter: 26 mm (1 in)
  • Overall Diameter: 90 mm
  • Bolt Circle Diameter: 116 mm
  • Baffle Cutout Diameter: 64 mm
  • Overall Depth: 30 mm
  • Flange/Gasket Thickness: 5 mm
  • Impedance: 4 ohm
  • Program Power: 250 W
  • Power: 150 W
  • Sensitivity: 105 dB

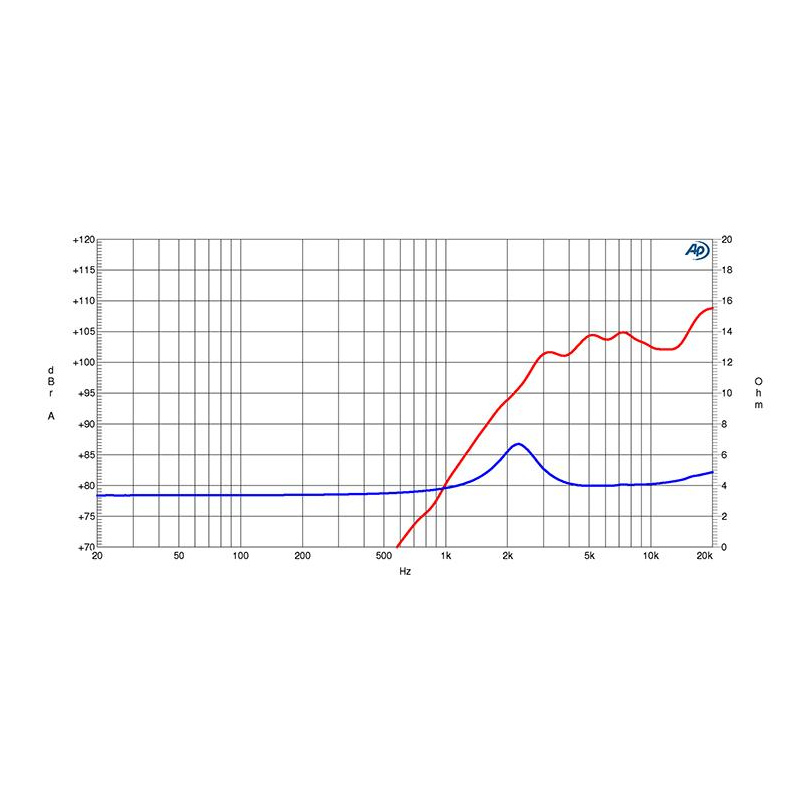

  • Frequency Range: 4000-20000 Hz
  • Voice Coil Diameter: 26 mm (1 in)
  • Voice Coil Former: Kapton
  • Voice Coil Depth: 3 mm
  • Ferrofluid: Yes
  • Terminals: Faston
  • Mounting Holes: 4


Thiele and Small parameters:  Need some help? Read our quick guide to TS Params.


  • Resonance (Fs) - 2300 Hz
  • DC Resistance (Re) - 3.25 Ohm

Shipping Information


  • Net Weight: 0.45 kg
