This is a new product, which is not yet available. Preliminary information for reference only. Specifications may change. | ||

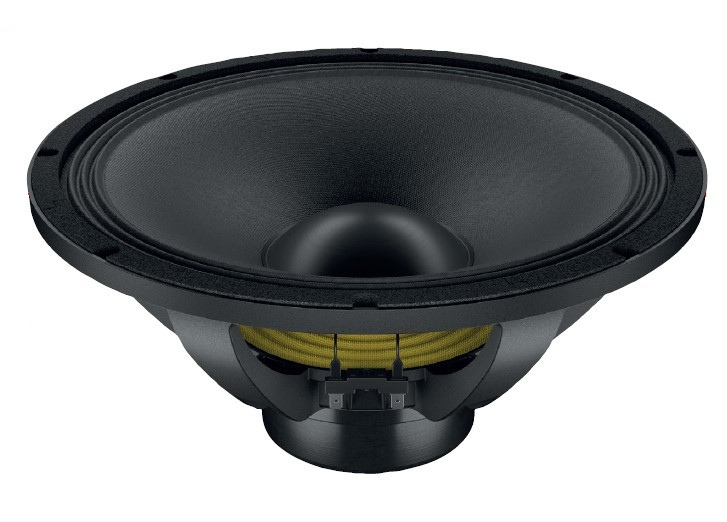

Lavoce WAN143.00 13.5" Speaker Driver 500W 8 Ohm
Key features
3 inch copper voice coil
98 db/spl sensitivity
1000 watt program power handling
Fem optimized motor and suspensions
Optimized cooling system
Triple roll surround
Technical specifications
- Nominal Diameter: 340 mm (13.5 in)
- Impedance: 8 Ohm
- Minimum Impedance: 6.3 Ohm
- AES Power: 500 W
- Program Power: 1000 W
- Sensitivity: 98 dB
- Frequency Range: 45 - 3000 Hz
- Voice Coil Diameter: 75 mm (3 in)
- Voice Coil Material: Copper
- Voice Coil Former: Glass Fiber
- Voice Coil Depth: 20.3 mm (0.8 in)
- Magnetic Gap Depth: 10.5 mm (0.41 in)
- Cone Material: Water Resistant Treated Paper + Water Proof Front Side Treatment
- Surround Material: Polycotton
- Chassis Material: Aluminium
- Magnet Material: Neodymium
- Magnet Dims: 75.4 x 10 mm
- Driver Displacement Volume: 3.2 l (0.11 ft3)
- Recommended Enclosure: 58.6 l (2.1 ft3)
- Recommended Tuning: 50 Hz
Thiele and Small parameters: Need some help? Read our quick guide to TS Params.
- Maximum Linear Excursion (Xmax) - 7.5 mm
- Maximum Mechanical Excursion (Xmech) - 13.4 mm
Shipping Information
- Net weight: 5.1 kg (11.2lb)
- Multipack size (WxDxH): 397 x 397 x 210 mm (15.6 x 15.6 x 8.3in)
- Multipack weight: 6.3 kg (13.9lb)
