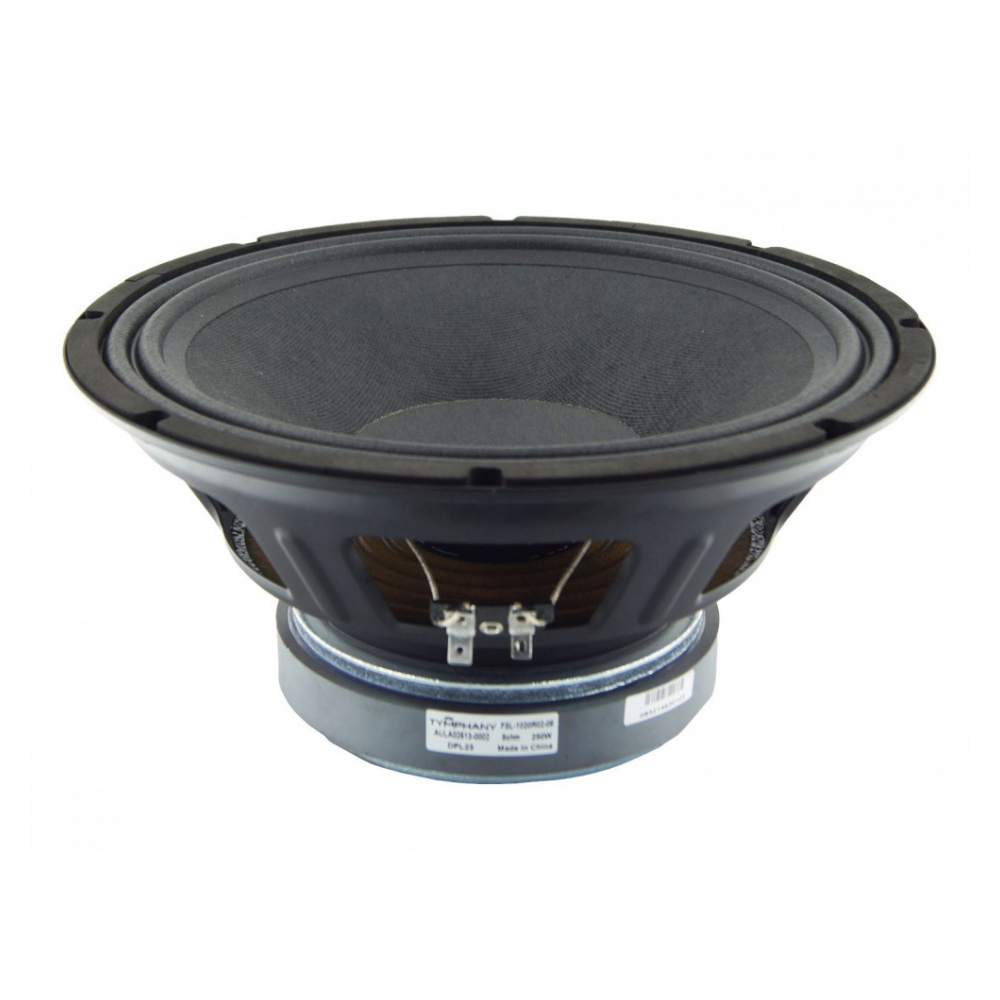

Peerless FSL-1020 v2 10" 8 ohm 170W Woofer
Key features
- Pressed Steel Basket
- Paper Diaphragm
- Fabric Surround
- Ferrite Magnet
- High Sensitivity
Technical specifications
- Nominal Diameter: 254 mm (10 in)
- Impedance: 8 ohm
- Minimum Impedance: 6.9 ohm
- Power: 167 W
- Sensitivity: 95.3 dB
- Frequency Range: 50 - 2000 Hz
- Voice Coil Diameter: 50.5 mm
- Magnetic Gap Depth: 8 mm
- Cone Material: Paper
- Chassis Material: Steel
- Magnet Material: Ferrite
Thiele and Small parameters: Need some help? Read our quick guide to TS Params.
- Resonance (Fs) - 65 Hz
- DC Resistance (Re) - 5.8 Ohm
- Diaphragm Area (Sd) - 373 cm2
- Moving Mass - System (Mms) - 30.3 g
- Force Factor (BL) - 13.6 Tm
- Maximum Linear Excursion (Xmax) - 5.07 mm
- Voice Coil Inductance (Le) - 0.746 mH
- Mechanical Q (Qms) - 4.75
- Electrical Q (Qes) - 0.391
- Total Q (Qts) - 0.36
- Compliance (Cms) - 0.2 mm/N
- Compliance Equivalent Volume (Vas) - 38.5 L
Shipping Information
- Net Weight: 3.45 kg
